22829
7'' LED Auxiliary Driving Lamp
- High Power 9W LEDs for exceptional performance (reference no. 20)
- Optimal illumination provides excellent visibility
- Increases driver’s safety and comfort with less eye fatigue
- Engineered to withstand extreme vibration, shock, dust, and water immersion
- Perfected heat management for long-lasting performance
- Aluminum alloy housing for ultra-light weight (1640g)
- Suitable for extreme terrain and climate
- Complies with E-mark regulations
Feature
- Part No.
- Regulation
- IP Rating
- Markets
- Shape
- Voltage
- Function
- Mounting Type
- SMD LEDs
- Watts
- Raw Lumen
- Effective Lumen

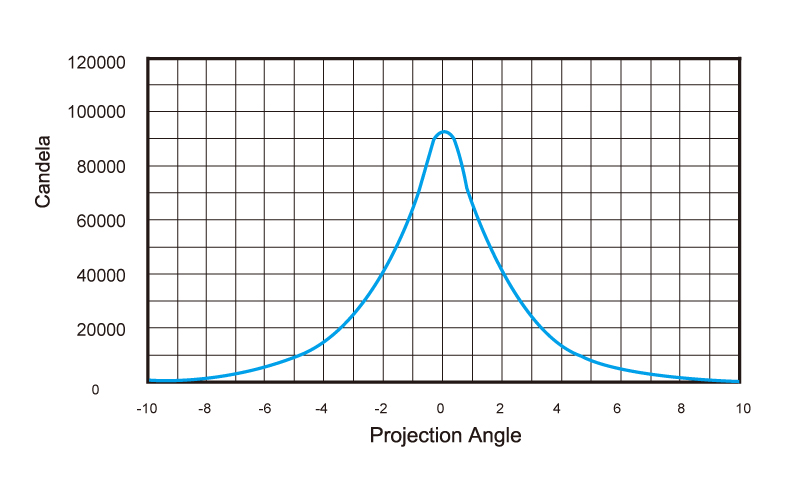

- HV CD
- Current Draw
- Connection
- Temperature
- Lens
- Housing
- Bracket
- Hardware
-
-
22829-B
- EMC │ ECE
- IP66
- Heavy Duty Truck
- Round
- 9~32V
- Driving lamp │ DRL
- Bracket Mounting
- 3
- 11
- 1800
- 1120
- 92000
- 13.5V at 0.8A±0.25A
28V at 0.39A±0.013A - 250mm cable
- -30°C~50°C
- PC
- Aluminum
- Zinc cast
- Stainless steel
-
