26973

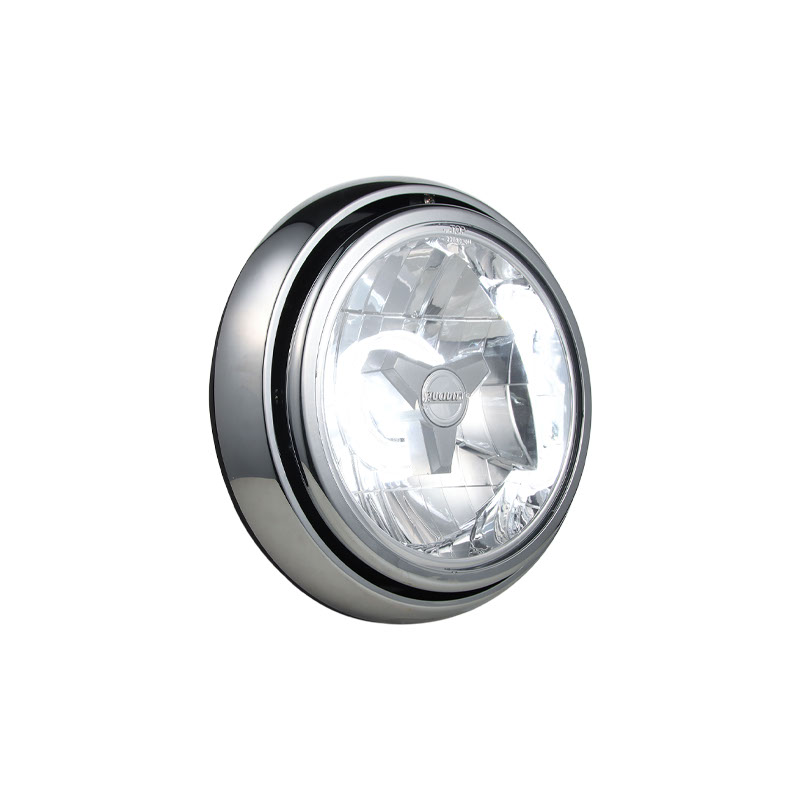

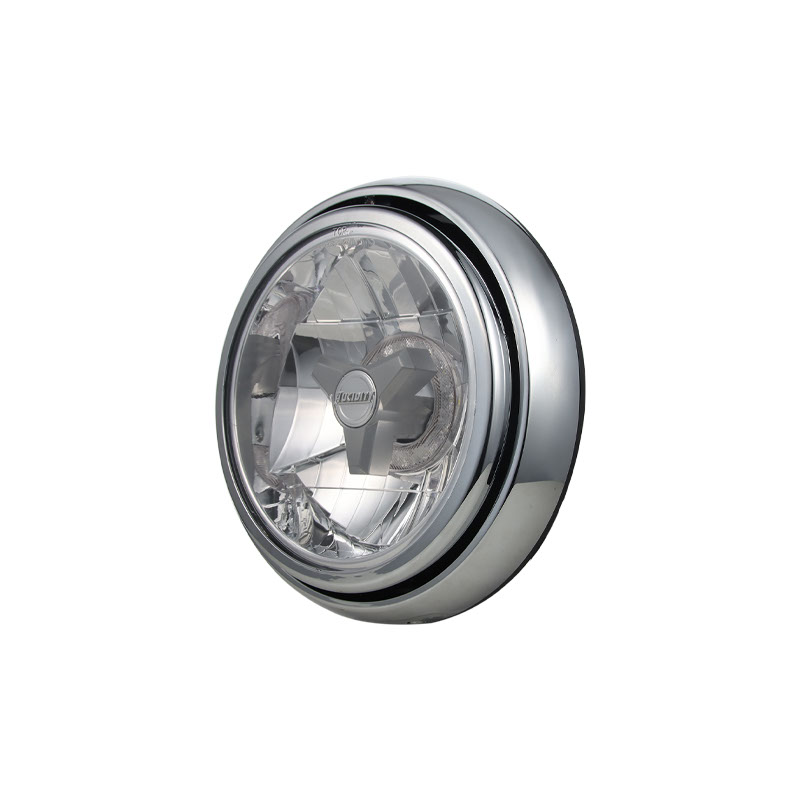

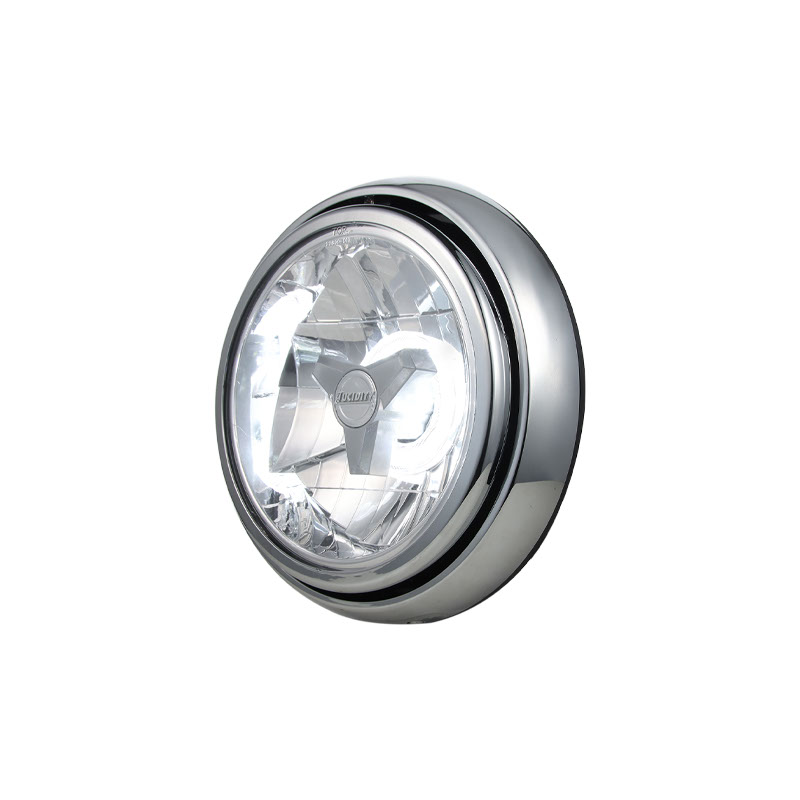

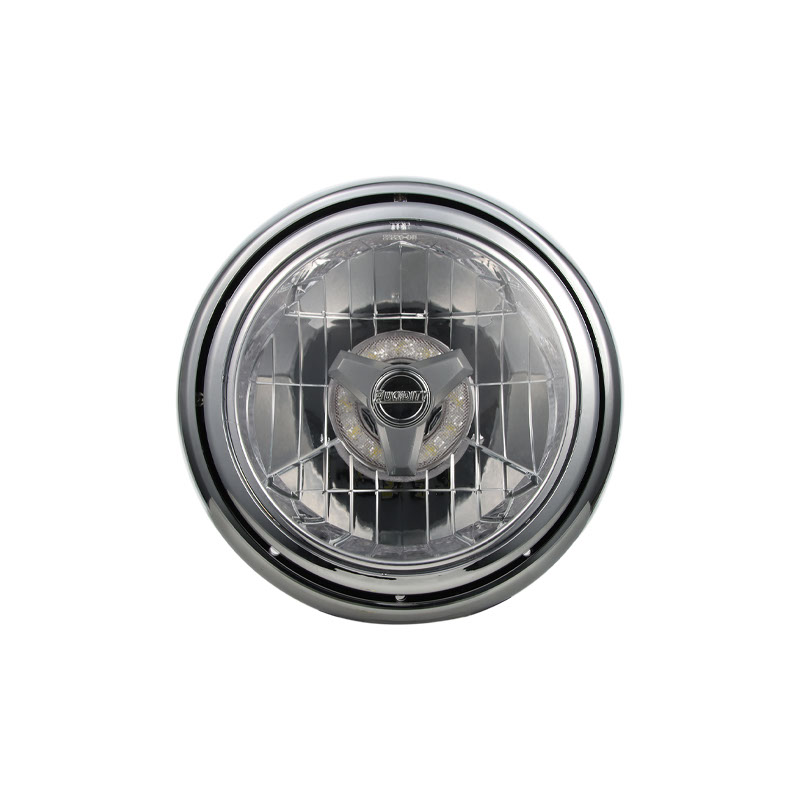

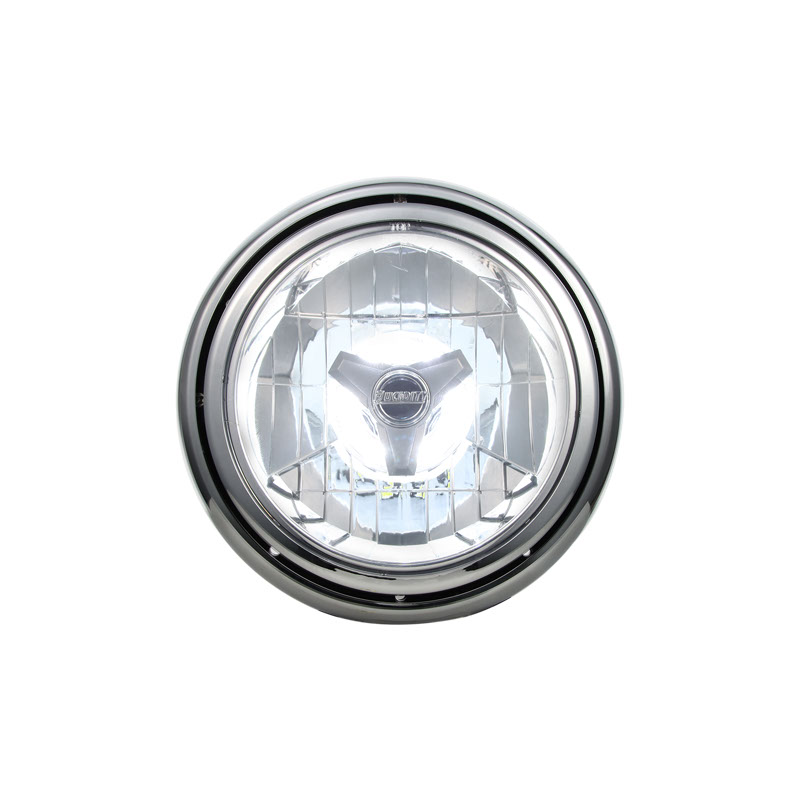

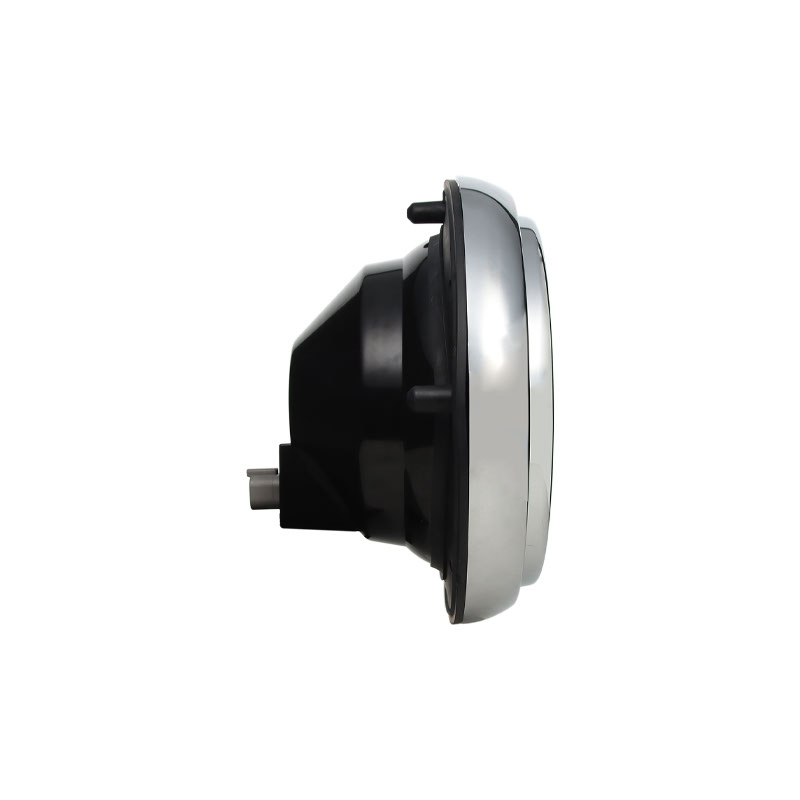

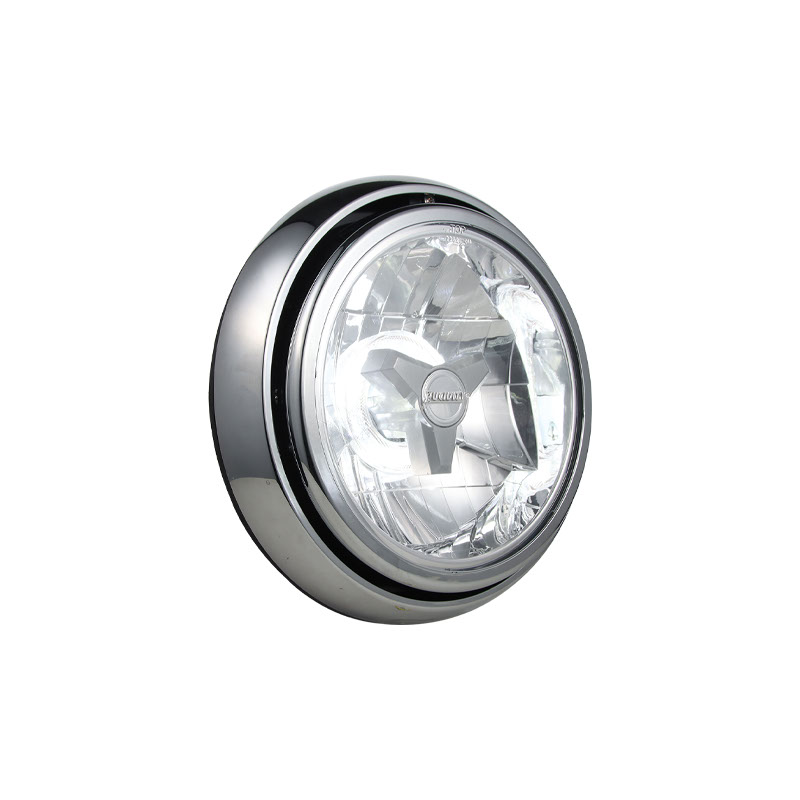

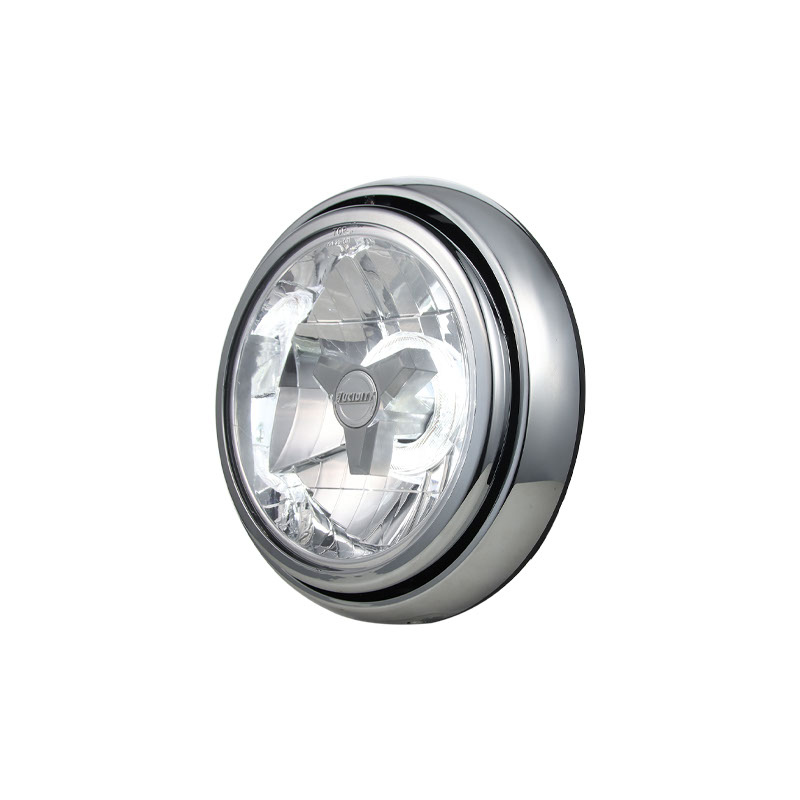

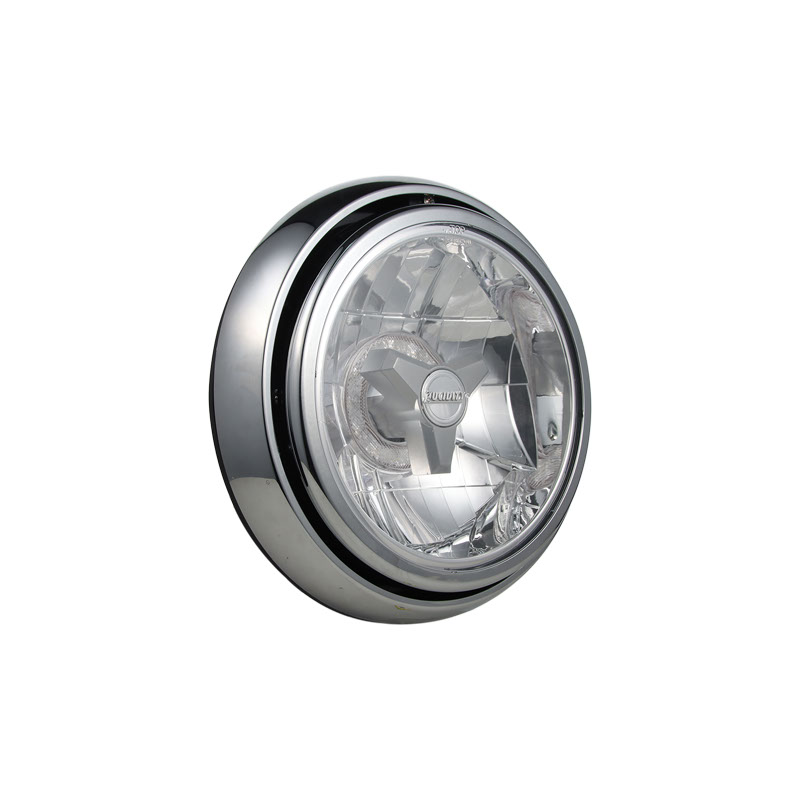

LED Auxiliary Driving Lamp
- Multi-functional LED head lamp: high beam, low beam, daytime running
- Powerful 7W LEDs for superior lighting vision
- Bright spreading light that improves visibility and road safety
- Low power consumption compared to incandescent lamps
- Perfected heat management for long-lasting performance
- Comes with new enclosed rear bucket, to reduce dirt splashing to the front
- Lightest weight design in the class
- Sealing boot for prevention against dirt and dust ingression

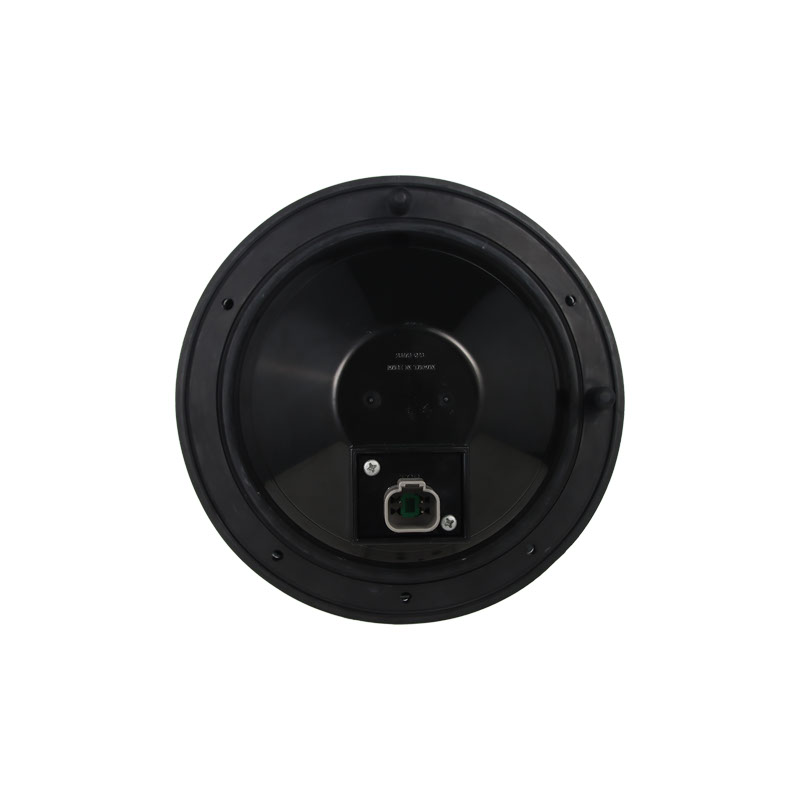

- Built-in Deutsch connector for easy installation
- Unbreakable PC lens with scratch-resistant coating
- Vibration, corrosion, water resistance tested
Feature
- Part No.
- IP Rating
- Markets
- Shape
- Voltage
- Function
- Mounting Type
- SMD LEDs
- Watts
- Raw Lumen
- Effective Lumen
- HV CD
- Current Draw
- Connection
- Temperature
- Lens
- Housing
- Bracket
-
-
26973-1
- IP66
- Heavy Duty Truck
- Round
- 9~32V
- Driving lamp │ DRL
- Recessed Mounting
- 5
- Low Beam:14.9W
High Beam:21.4W - 1180
- 440
- Low Beam:
13.5V at 1.05± 0.115A
28V at 0.535±0.065A
High Beam:
13.5V at 1.55± 0.25A
28V at 0.765±0.075A - Deutsch 4 way connector
- -30°C~50°C
- PC
- Aluminum
- PC
-
-
-
26973-2
- IP66
- Heavy Duty Truck
- Round
- 9~32V
- Driving lamp │ DRL
- Recessed Mounting
- 3
- High Beam:21.4W
- 1520
- 570
- 53000
- High Beam:
13.5V at 1.55±0.25A
28V at 0.765±0.075A - Deutsch 4 way connector
- -30°C~50°C
- PC
- Aluminum
- PC
-
