22832

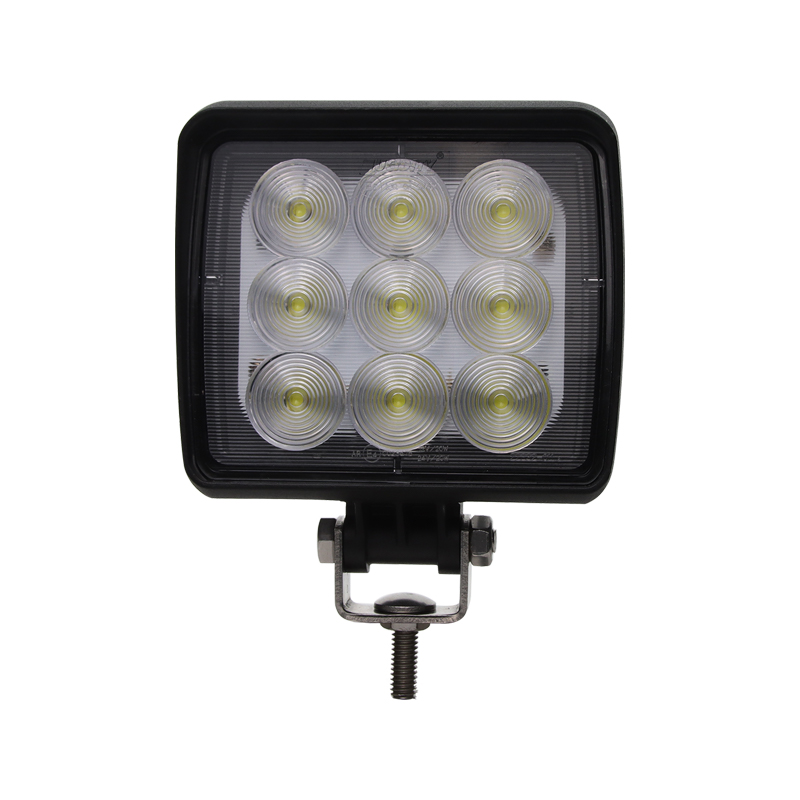

Flood Beam LED Work Lamp

  • Even fading pattern without hotspots
  • Epoxy encapsulated electronics
  • Low power consumption
  • Available with Built-in Deutsch connector
  • ECE R23 reversing homologation number AR-E4-00.23476
  • ADR approval version available upon request
Feature
Specification Beam Pattern
  • Part No.
  • Regulation
  • IP Rating
  • Markets
  • Shape
  • Voltage
  • Mounting Type
  • Light Pattern
  • SMD LEDs
  • Watts
  • Raw Lumen
  • Effective Lumen
  • HV CD
  • Current Draw
  • Connection
  • Temperature
  • Lens
  • Housing
  • Bracket
  • Hardware

    • 22832

      Add to inquiry Compare products
    • ECE │ EMC
    • IP69K
    • Heavy Duty Trailer │ Construction │ Light Duty Trailer
    • Rectangular
    • 9~32V
    • Bracket Mounting
    • Flood
    • 9
    • 18
    • 2160
    • 1510
    • 7500
    • 13.5V at 1.26A±0.18A
      28V at 0.6A±0.12A
    • 280mm cable
    • -40℃~60℃
    • PC
    • Aluminum
    • Stainless Steel
    • Stainless Steel

    • 22832DT

      Add to inquiry Compare products
    • ECE │ EMC
    • IP69K
    • Heavy Duty Trailer │ Construction │ Light Duty Trailer
    • Rectangular
    • 9~32V
    • Bracket Mounting
    • Flood
    • 9
    • 18
    • 2160
    • 1510
    • 7500
    • 13.5V at 1.26A±0.18A
      28V at 0.6A±0.12A
    • Built-in Deutsch connector
    • -40℃~60℃
    • PC
    • Aluminum
    • Stainless Steel
    • Stainless Steel
