22843

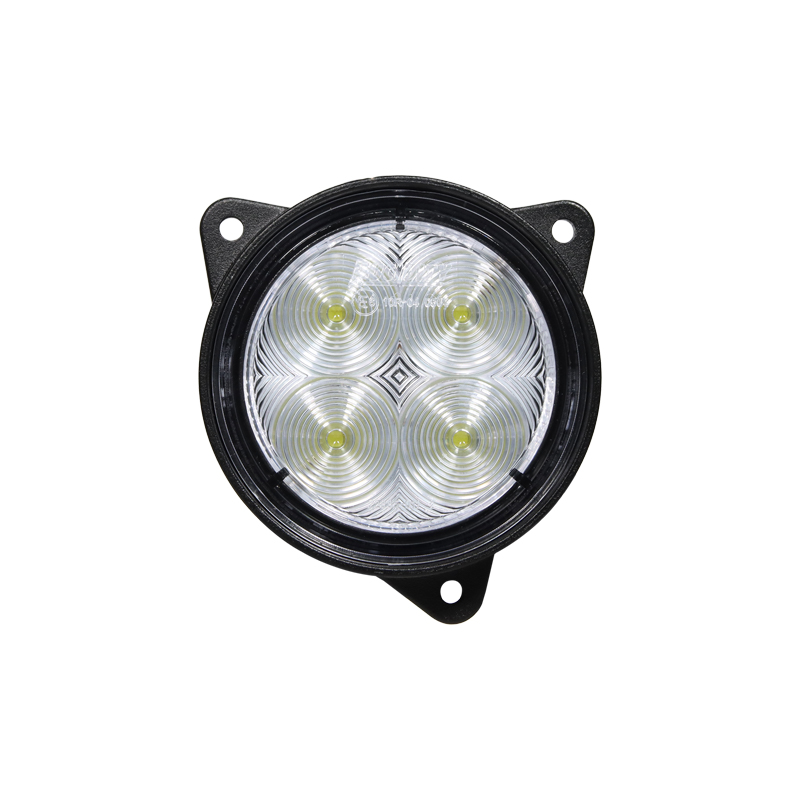

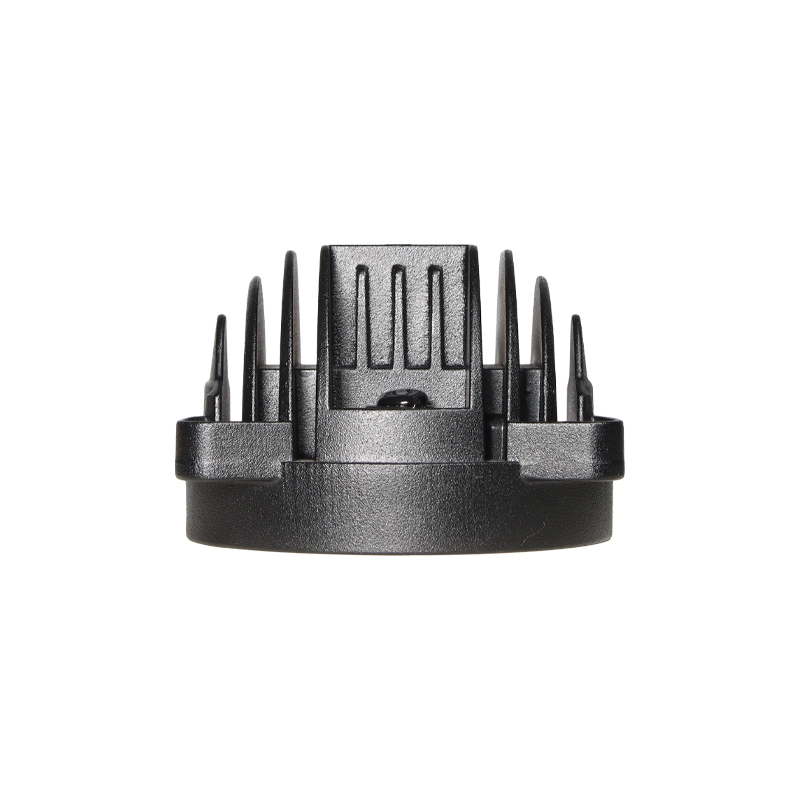

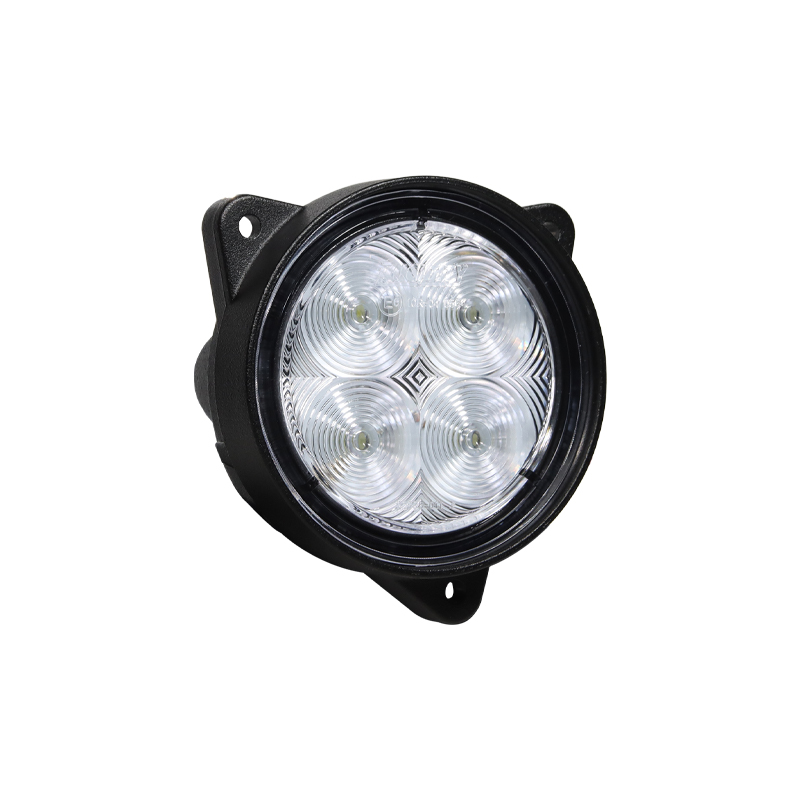

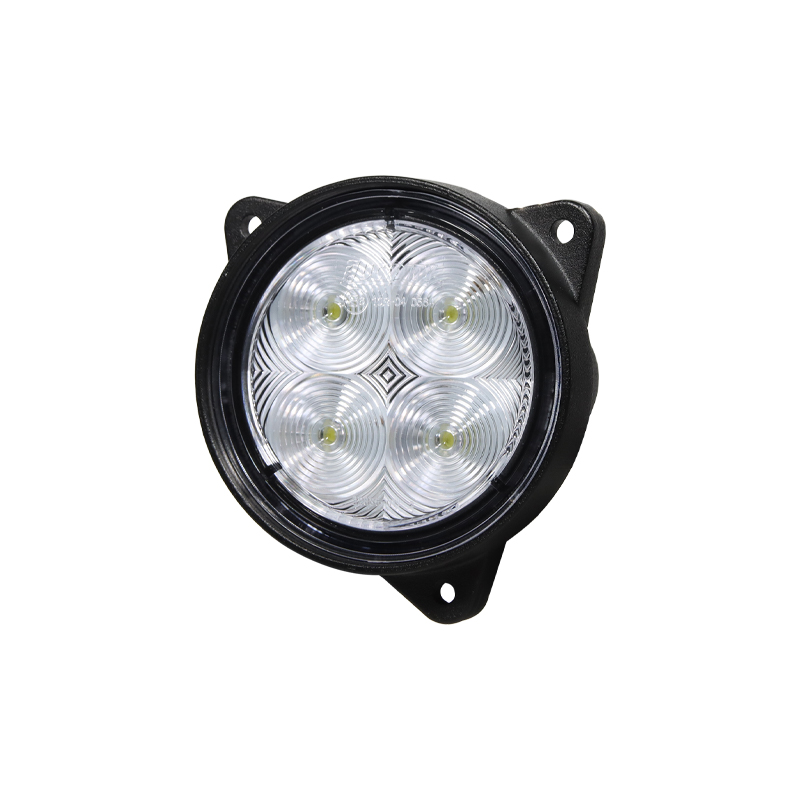

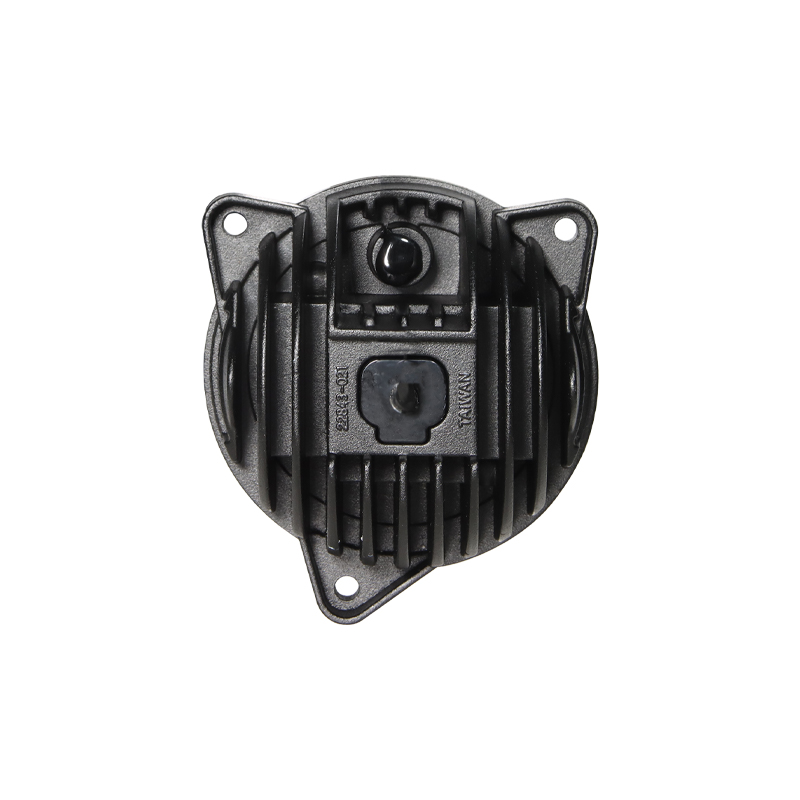

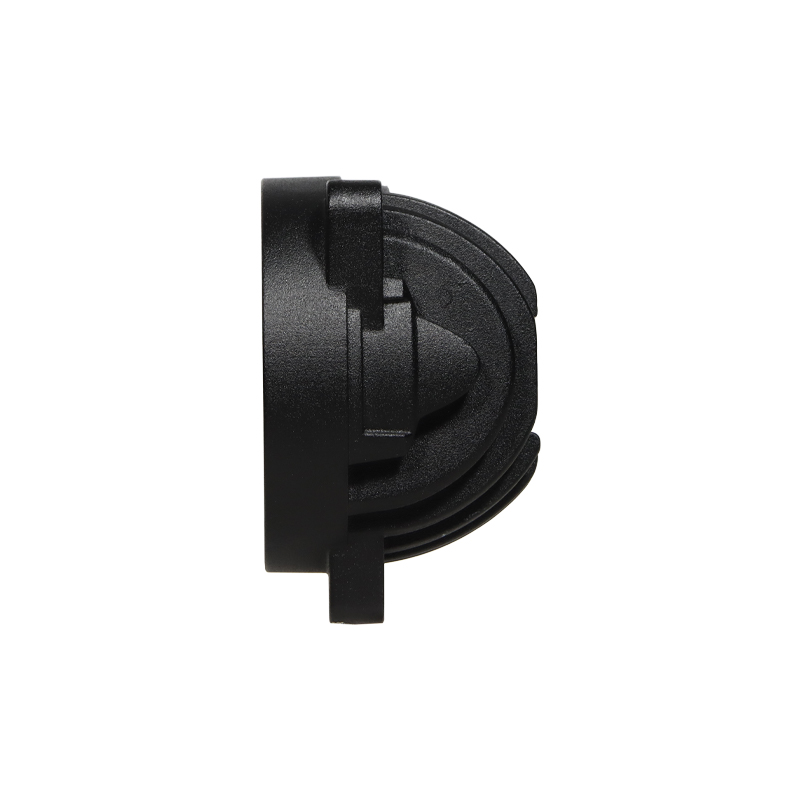

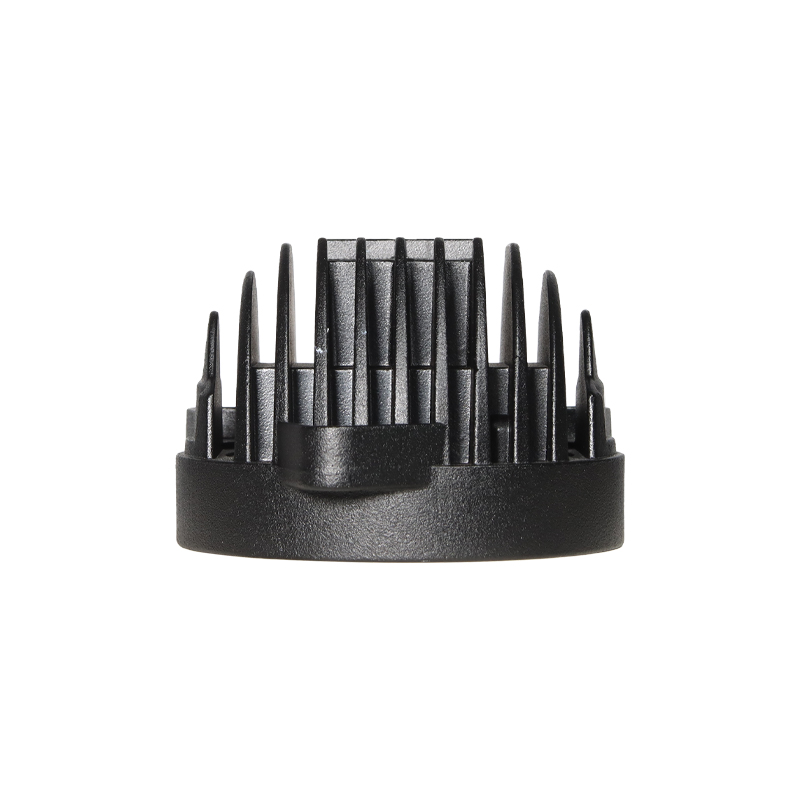

Flood Beam LED Work Lamp

  • Recess mount with 3 bolts fixation for panel body design
  • Great brightness and even fading light pattern without hotspots
  • Low power consumption
  • Available with built-in Deutsch connector
  • 70% of raw lumen emission without compromising thermo management
Feature

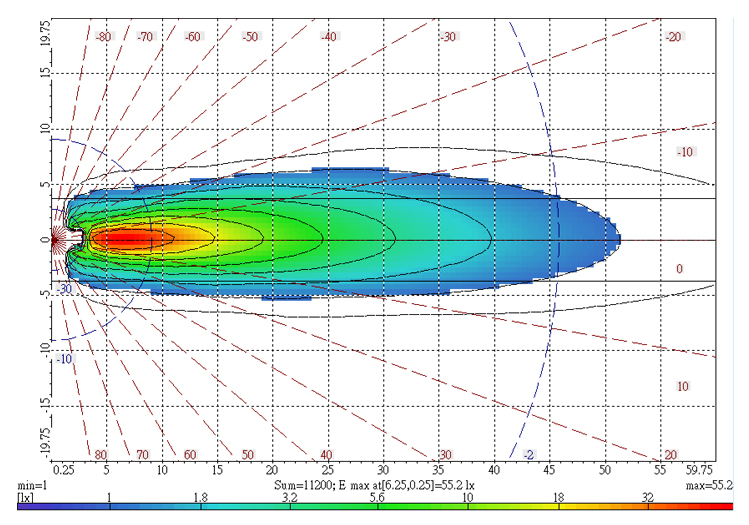

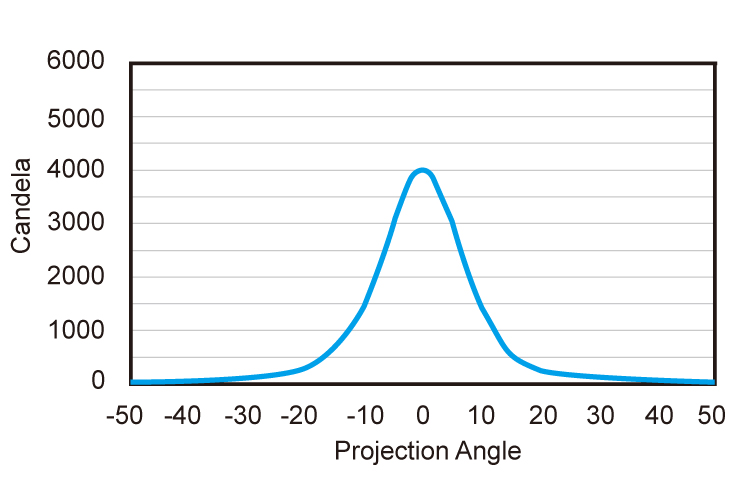

Specification Beam Pattern
  • Part No.
  • Regulation
  • IP Rating
  • Markets
  • Shape
  • Voltage
  • Mounting Type
  • Light Pattern
  • SMD LEDs
  • Watts
  • Raw Lumen
  • Effective Lumen
  • HV CD
  • Current Draw
  • Connection
  • Temperature
  • Lens
  • Housing
  • Bracket
  • Hardware

    • 22843DT

      Add to inquiry Compare products
    • EMC
    • IP69K
    • Heavy Duty Trailer │ Construction
    • Round
    • 9~32V
    • Recessed Mounting
    • Flood
    • 4
    • 10.5
    • 960
    • 670
    • 4000
    • 13.5V at 0.78A ± 0.045A
      28V at 0.355A ± 0.035A
    • built-in Deutsch connector
    • -40℃~60℃
    • PC
    • Aluminum
    • Stainless Steel
    • Stainless Steel

    • 22843

      Add to inquiry Compare products
    • EMC
    • IP69K
    • Heavy Duty Trailer │ Construction
    • Round
    • 9~32V
    • Recessed Mounting
    • Flood
    • 4
    • 10.5
    • 960
    • 670
    • 4000
    • 13.5 Vat 0.78±0.045A
      28 Vat 0.355A±0.035A
    • 1000mm cable
    • -40℃~60℃
    • PC
    • Aluminum
    • Stainless Steel
    • Stainless Steel
